ATHC4242, ATHC4444, ATHC4646, ATHC4848

Pattes de tables

This unique design allows patients/residents to sit with others while having their own table tray adjusted to the height and depth that best suit them, without affecting the other three users. Each individual tray can be adjusted in two ways: in height, from 27'' to 37'', and in depth, with 7'' of travel. Locking handles ensure safe and easy operation.

The curved shape of the floor bases allows the resident to simply pivot away from the table without having to move backward first.

Specifications:

Available in four sizes:

  • Model ATHC4242: Overall dimensions of 42'' x 42'', extending up to 49'' x 49'', with four individual trays measuring 17'' x 23''.
  • Model ATHC4444: Overall dimensions of 44'' x 44'', extending up to 51'' x 51'', with four individual trays measuring 18'' x 24''.
  • Model ATHC4646: Overall dimensions of 46'' x 46'', extending up to 53'' x 53'', with four individual trays measuring 19'' x 25''.
  • Model ATHC4848: Overall dimensions of 48'' x 48'', extending up to 55'' x 55'', with four individual trays measuring 20'' x 26''.

WATCH THE PRODUCT VIDEO

Notes:

The rectangular trays are available in the following finishes:

  • 1/16'' plastic laminate available in Walnut, Maple, or Cherry, with matching 2 mm woodgrain edge banding.
  • Other standard laminates are also available with black, brown, or beige T-molded edges.

The base is constructed from 12-gauge steel with an electrostatic powder-coat finish.

  • Standard finishes: Black, Silver, or Brown.

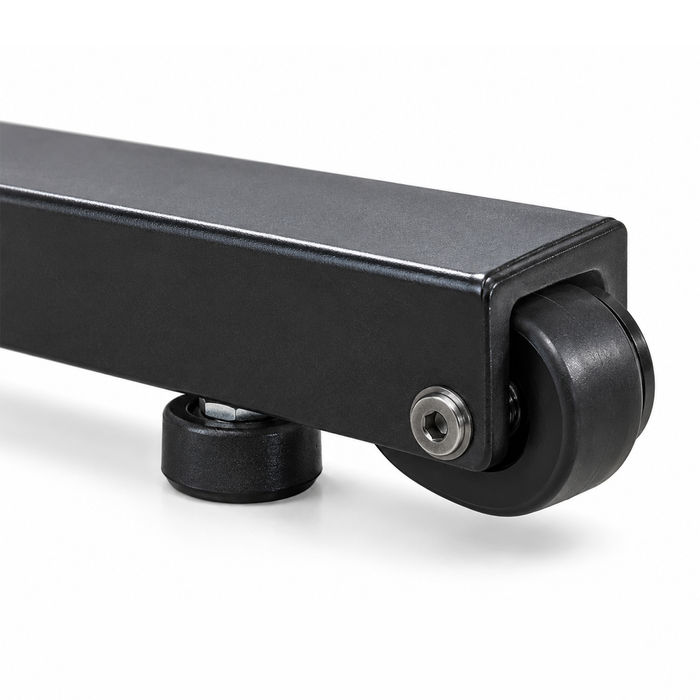

  • The base includes an integrated transport caster for easier mobility.
  • The base is equipped with Dor-Val GL1116 Table Shox, self-leveling hydraulic glides that automatically adjust to uneven floors.

An optional 14'' diameter, height-adjustable Lazy Susan is also available with laminate and edge finishes matching the table trays.
